Non-Contact Safety Switches
Non-contact safety switches
To be used in conjunction with a safety relay
ANATOM 78S
| Technology |
Coded magnetic safety switch |
| EN ISO 13849-1 |
PLe / Cat.4 when used with a suitable safety relay |
| Outputs |
2NO 0.8 A max 24V safety outputs
1NC PNP 250mA auxiliary output
|
| Switching distance |
10mm |
| Hysteresis |
2mm |
| Connection |
Supplied with either 3m, 6m,12m cable or 50cm cable with M12 connector |
| Switching indication |
LED on housing |
| Operating temperature |
-25°C to +60°C |
| IP Rating |
IP67 |
| Mounting |
Double mounting brackets |
| Housing |
Polyamide6 |
ANATOM 98S
| Technology |
Coded magnetic safety switch |
| EN ISO 13849-1 |
PLe / Cat.4 when used with a suitable safety relay |
| Outputs |
2NO 0.8 A max 24V safety outputs
1NO PNP 250mA auxiliary output
|
| Switching distance |
10mm |
| Hysteresis |
2mm |
| Connection |
Supplied with either 3m, 6m,12m cable or 50cm cable with M12 connector |
| Switching indication |
LED on housing |
| Operating temperature |
-25°C to +60°C |
| IP Rating |
IP67 |
| Mounting |
Double mounting brackets |
| Housing |
Polyamide6 |

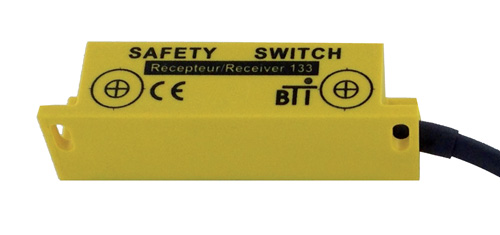

OPTOPUS
| Technology |
Coded magnetic safety switch |
| EN ISO 13849-1 |
PLe / Cat.4 when used with a suitable safety relay |
| Outputs |
2NO 0.4 A max 24V safety outputs
1NC PNP 250mA auxiliary output
|
| Switching distance |
9mm |
| Hysteresis |
1mm |
| Connection |
Supplied with either 3m, 6m,12m cable or 50cm cable with M12 connector |
| Switching indication |
LED on housing |
| Operating temperature |
-20°C to +60°C |
| IP Rating |
IP67 |
| Mounting |
Double mounting brackets |
| Housing |
Polyamide6 |
| Miniature housing |
| Up to 30 switches can be wired in series |

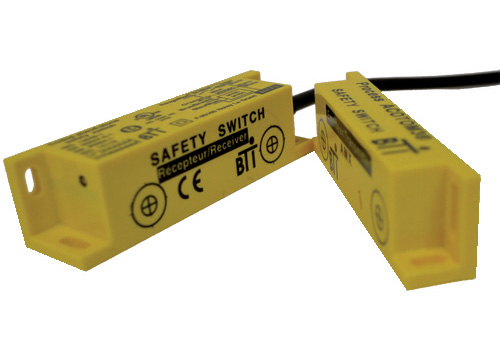

XORF-S
| Technology |
Coded RFID safety switch |
| EN ISO 13849-1 |
PLe / Cat.4 when used with a suitable safety relay |
| Outputs |
2NO 50mA/30V safety outputs
1PNP 50mA auxiliary output
|
| Switching distance |
20mm |
| Hysteresis |
— |
| Connection |
Supplied with either 3m, 6m,12m cable or 50cm cable with M12 connector |
| Switching indication |
LED on housing |
| Operating temperature |
-30°C to +50°C |
| IP Rating |
IP67 |
| Mounting |
Double mounting brackets |
| Housing |
Polyamide6 |
| 16 million code possibilities |

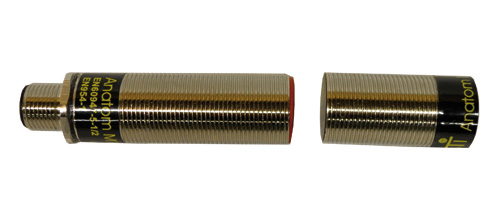

ANATOM M18
| Technology |
Coded magnetic safety switch |
| EN ISO 13849-1 |
PLe / Cat.4 when used with a suitable safety relay |
| Outputs |
2NO 0.8A max/24V safety outputs
1NC PNP 250mA auxiliary output
|
| Switching distance |
6mm |
| Hysteresis |
2mm |
| Connection |
M12 8-pin connector |
| Operating temperature |
-20°C to +60°C |
| IP Rating |
IP67 |
| Housing |
CuNi M18 |
| Non-contact safety switch in a cylindrical housing |
MASSIMOTTO 78S
| Technology |
Coded magnetic safety switch |
| EN ISO 13849-1 |
PLe / Cat.4 when used with a suitable safety relay |
| Outputs |
2NO 0.8A max/24V safety outputs
1NC PNP 250mA auxiliary output
|
| Switching distance |
10mm |
| Hysteresis |
2mm |
| Connection |
2 × M12 8-pin connectors |
| Switching indication |
LED on housing |
| Operating temperature |
-25°C to +60°C |
| IP Rating |
IP67 |
| Mounting |
4 × M4 Fixings |
| Housing |
Polyamide6 |
| For mounting in series around a machine |

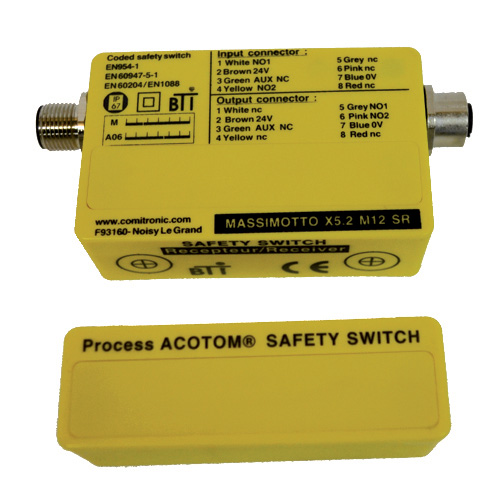

MASSIMOTTO 98S
| Technology |
Coded magnetic safety switch |
| EN ISO 13849-1 |
PLe / Cat.4 when used with a suitable safety relay |
| Outputs |
2NO 0.8A max/24V safety outputs
1NO PNP 250mA auxiliary output
|
| Switching distance |
10mm |
| Hysteresis |
2mm |
| Connection |
2 × M12 8-pin connectors |
| Switching indication |
LED on housing |
| Operating temperature |
-25°C to +60°C |
| IP Rating |
IP67 |
| Mounting |
4 × M4 Fixings |
| Housing |
Polyamide6 |
| For mounting in series around a machine |

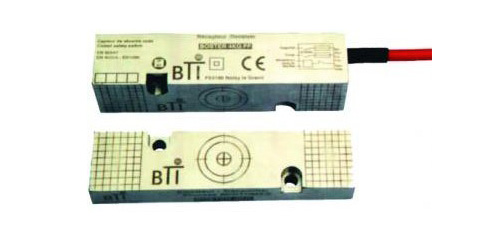

ANATOM 78S INOX
| Technology |
Coded magnetic safety switch |
| EN ISO 13849-1 |
PLe / Cat.4 when used with a suitable safety relay |
| Outputs |
2NO 0.8A max/24V safety outputs
1NC PNP 250mA auxiliary output
|
| Switching distance |
10mm |
| Hysteresis |
2mm |
| Connection |
Supplied with either 3m, 6m,12m cable or 50cm cable with M12 connector |
| Switching indication |
LED on housing |
| Operating temperature |
-25°C to +60°C |
| IP Rating |
IP69K |
| Mounting |
Double mounting brackets |
| Housing |
316L Stainless Steel |

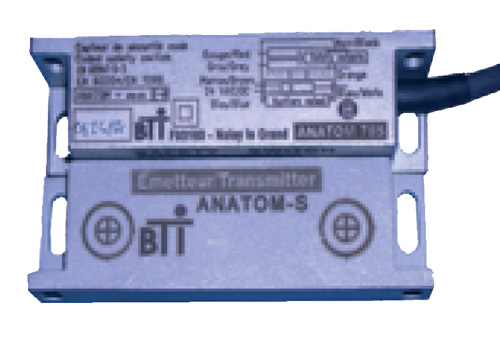

ANATOM 98S INOX
| Technology |
Coded magnetic safety switch |
| EN ISO 13849-1 |
PLe / Cat.4 when used with a suitable safety relay |
| Outputs |
2NO 0.8A max/24V safety outputs
1NO PNP 250mA auxiliary output
|
| Switching distance |
10mm |
| Hysteresis |
2mm |
| Connection |
Supplied with either 3m, 6m,12m cable or 50cm cable with M12 connector |
| Switching indication |
LED on housing |
| Operating temperature |
-25°C to +60°C |
| IP Rating |
IP69K |
| Mounting |
Double mounting brackets |
| Housing |
316L Stainless Steel |

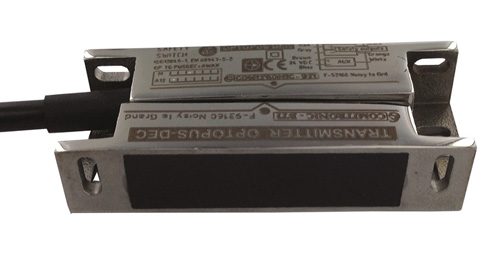

OPTOPUS INOX
| Technology |
Coded magnetic safety switch |
| EN ISO 13849-1 |
PLe / Cat.4 when used with a suitable safety relay |
| Outputs |
2NO 0.4 A max 24V safety outputs
1NC PNP 250mA auxiliary output
|
| Switching distance |
9mm |
| Hysteresis |
1mm |
| Connection |
Supplied with either 3m, 6m,12m cable or 50cm cable with M12 connector |
| Switching indication |
LED on housing |
| Operating temperature |
-20°C to +60°C |
| IP Rating |
IP69K |
| Mounting |
Double mounting brackets |
| Housing |
316L Stainless Steel |
| Miniature housing |
| Up to 30 switches can be wired in series |

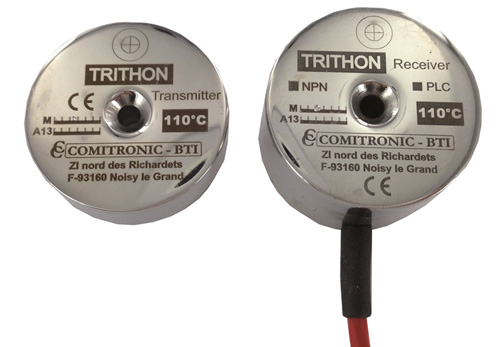

TRITHON INOX
| Technology |
Coded magnetic safety switch |
| EN ISO 13849-1 |
PLe / Cat.4 when used with a suitable safety relay |
| Outputs |
2NO 1A max 24V safety outputs
1NC PNP 1A auxiliary output
|
| Switching distance |
9mm |
| Hysteresis |
2mm |
| Connection |
Supplied with a 50cm cable with M12 connector |
| Operating temperature |
-30°C to +110°C |
| IP Rating |
IP69K |
| Housing |
316L Stainless Steel |
| Laser etched (no ink) |
Standalone non-contact safety switches
No safety relay required, wired direct to isolation contactor

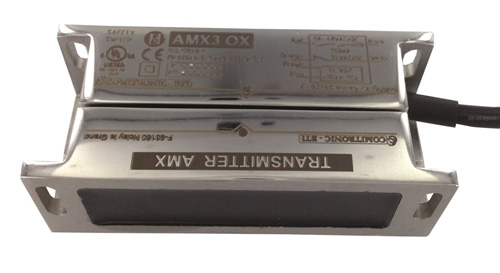

AMX3
| Technology |
Coded magnetic safety switch / No safety relay required |
| EN ISO 13849-1 |
PLd (PLe when used with a safety relay) |
| Outputs |
1NO 2A/48V safety output
1NC PNP 250mA auxiliary output
|
| Switching distance |
10mm |
| Hysteresis |
2mm |
| Connection |
Supplied with either 3m, 6m,12m cable or 50cm cable with M12 connector |
| Switching indication |
LED on housing |
| Operating temperature |
-25°C to +60°C |
| IP Rating |
IP67 |
| Mounting |
Double mounting brackets |
| Housing |
Polyamide6 |
AMX4
| Technology |
Coded magnetic safety switch / No safety relay required |
| EN ISO 13849-1 |
PLd (PLe when used with a safety relay) |
| Outputs |
2NO 2A/48V safety outputs |
| Switching distance |
10mm |
| Hysteresis |
2mm |
| Connection |
Supplied with either 3m, 6m,12m cable or 50cm cable with M12 connector |
| Switching indication |
LED on housing |
| Operating temperature |
-25°C to +60°C |
| IP Rating |
IP67 |
| Mounting |
Double mounting brackets |
| Housing |
Polyamide6 |
AMX5
| Technology |
Coded magnetic safety switch / No safety relay required |
| EN ISO 13849-1 |
PLd (PLe when used with a safety relay) |
| Outputs |
2NO 2A/48V safety outputs
1NC PNP 250mA auxiliary output
|
| Switching distance |
10mm |
| Hysteresis |
2mm |
| Connection |
Supplied with either 3m, 6m,12m cable or 50cm cable with M12 connector |
| Switching indication |
LED on housing |
| Operating temperature |
-25°C to +60°C |
| IP Rating |
IP67 |
| Mounting |
Double mounting brackets |
| Housing |
Polyamide6 |
AMXR-S
| Technology |
Coded RFID safety switch / No safety relay required |
| EN ISO 13849-1 |
PLd (PLe when used with a safety relay) |
| Outputs |
2NO 2A/48V safety outputs
1NC PNP 400mA auxiliary output
|
| Switching distance |
24mm |
| Hysteresis |
— |
| Connection |
Supplied with either 3m, 6m,12m cable or 50cm cable with M12 connector |
| Switching indication |
LED on housing |
| Operating temperature |
-20°C to +60°C |
| IP Rating |
IP67 |
| Mounting |
Double mounting brackets |
| Housing |
Polyamide6 |
| 16 million code possibilities |

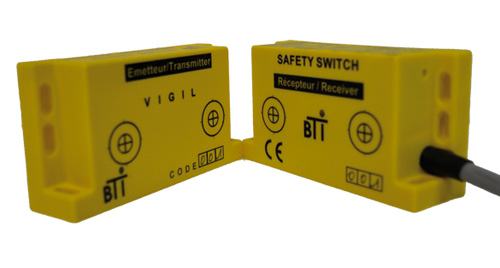

VIGIL RS
| Technology |
Coded magnetic safety switch / No safety relay required |
| EN ISO 13849-1 |
PLd (PLe when used with a safety relay) |
| Outputs |
2NO 2A/48V safety outputs
1NC PNP 250mA auxiliary output
|
| Switching distance |
10mm |
| Hysteresis |
2mm |
| Connection |
Supplied with either 3m, 6m,12m cable or 50cm cable with M12 connector |
| Switching indication |
LED on housing |
| Operating temperature |
-20°C to +60°C |
| IP Rating |
IP67 |
| Mounting |
Double mounting brackets |
| Housing |
Polyamide6 |
| Built-in reset |

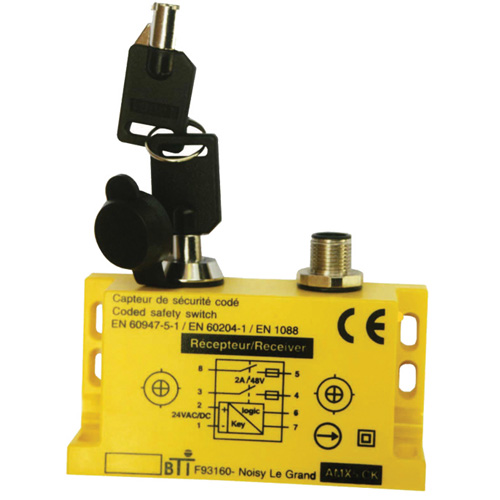

AMX5CK
| Technology |
Coded magnetic safety switch / No safety relay required |
| EN ISO 13849-1 |
PLd (PLe when used with a safety relay) |
| Outputs |
2NO 2A/48V safety outputs
2NC PNP 250mA auxiliary outputs for door open and key free indication
|
| Switching distance |
10mm |
| Hysteresis |
2mm |
| Connection |
M12 8-pin connector |
| Switching indication |
LED on housing |
| Operating temperature |
-25°C to +60°C |
| IP Rating |
IP67 |
| Mounting |
Double mounting brackets |
| Housing |
Polyamide6 |
| Supplied with personnel key |

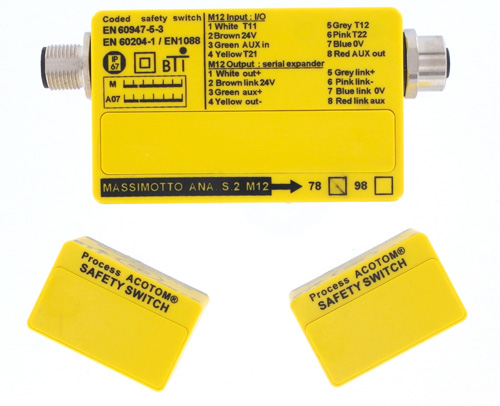

MASSIMOTTO
| Technology |
Coded magnetic safety switch / No safety relay required |
| EN ISO 13849-1 |
PLd (PLe when used with a safety relay) |
| Outputs |
2NO 2A/48V safety outputs
1NC PNP 250mA auxiliary output
|
| Switching distance |
8mm |
| Hysteresis |
3mm |
| Connection |
2 × M12 8-pin connectors |
| Switching indication |
LED on housing |
| Operating temperature |
-25°C to +60°C |
| IP Rating |
IP67 |
| Mounting |
4 × M4 Fixings |
| Housing |
Polyamide6 |
| For mounting in series around a machine |

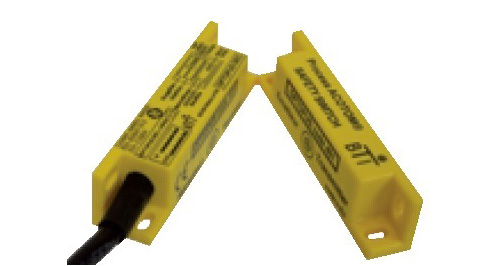

OPTO2S
| Technology |
Coded magnetic safety switch / No safety relay required |
| EN ISO 13849-1 |
PLc (PLe when used with a safety relay) |
| Outputs |
2NO 250 mA/48V safety outputs |
| Switching distance |
7mm |
| Hysteresis |
2mm |
| Connection |
Supplied with either 3m, 6m or 12m cable |
| Switching indication |
LED on housing |
| Operating temperature |
-20°C to +60°C |
| IP Rating |
IP67 |
| Mounting |
Double mounting brackets |
| Housing |
Polyamide6 |
| Miniature housing |

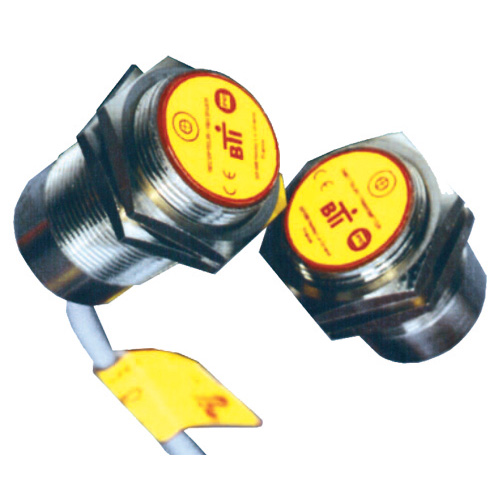

7SSR24V
| Technology |
Coded magnetic safety switch / No safety relay required |
| EN ISO 13849-1 |
PLc (PLe when used with a safety relay) |
| Outputs |
2NO 1A/48V safety outputs
1NC PNP 1A auxiliary output
|
| Switching distance |
6mm |
| Hysteresis |
2mm |
| Connection |
Supplied with either 3m, 6m or 12m cable |
| Switching indication |
LED on housing |
| Operating temperature |
-25°C to +60°C |
| IP Rating |
IP67 |
| Housing |
CuNi M30 |
| Non-contact safety switch in a cylindrical housing |
AMX3 INOX
| Technology |
Coded magnetic safety switch / No safety relay required |
| EN ISO 13849-1 |
PLd (PLe when used with a safety relay) |
| Outputs |
1NO 2A/48V safety output
1NC PNP 250mA auxiliary output
|
| Switching distance |
10mm |
| Hysteresis |
2mm |
| Connection |
Supplied with either 3m, 6m, 12m or 50mm cable with M12 connector |
| Switching indication |
LED on housing |
| Operating temperature |
-25°C to +60°C |
| IP Rating |
IP69K |
| Mounting |
Double mounting brackets |
| Housing |
316L Stainless Steel |
AMX5 INOX
| Technology |
Coded magnetic safety switch / No safety relay required |
| EN ISO 13849-1 |
PLd (PLe when used with a safety relay) |
| Outputs |
2NO 2A/48V safety outputs
1NC PNP 250mA auxiliary output
|
| Switching distance |
10mm |
| Hysteresis |
2mm |
| Connection |
Supplied with either 3m, 6m, 12m or 50mm cable with M12 connector |
| Switching indication |
LED on housing |
| Operating temperature |
-25°C to +60°C |
| IP Rating |
IP69K |
| Mounting |
Double mounting brackets |
| Housing |
316L Stainless Steel |
ATEX Rated non-contact safety switches

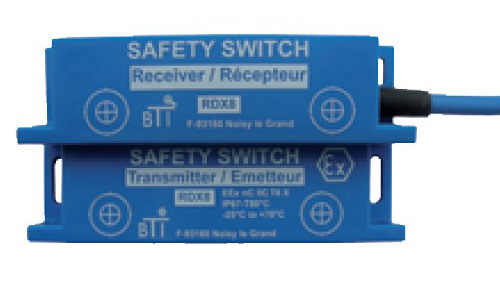

RDX8
| Technology |
ATEX ZONE 2 (II 3G) or 22 (II 3D) |
| EN ISO 13849-1 |
PLe / Cat.4 when used with a AWAX 26XXL–EEX3 safety relay |
| Outputs |
2NO 50mA/24V safety outputs
1NC PNP 50mA/24V auxiliary output
|
| Switching distance |
17mm |
| Hysteresis |
5mm |
| Connection |
Supplied with either 3m, 6m or 12m cable |
| Operating temperature |
-5°C to +80°C |
| IP Rating |
IP67 |
| Mounting |
Double mounting brackets |
| Housing |
Polyamide6 |
| Up to 30 switches in series |

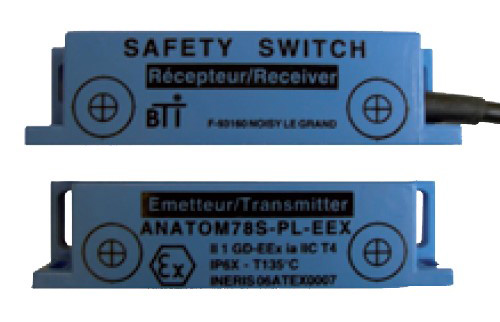

ANATOM78S PL EEX
| Technology |
ATEX ZONE 0 (II 1G) or 20 (II 1D) |
| EN ISO 13849-1 |
PLe / Cat.4 when used with a AWAX 26XXL–EEX safety relay |
| Outputs |
2NO 50 mA max/12V safety outputs
1NC PNP 15 mA/12V auxiliary output
|
| Switching distance |
10mm |
| Hysteresis |
4mm |
| Connection |
Supplied with 12m cable |
| Operating temperature |
-20°C to +40°C |
| IP Rating |
IP67 |
| Mounting |
Double mounting brackets |
| Housing |
Polyamide6 |
ANATOM78S INOX EEX
| Technology |
ATEX ZONE 1 (II 2G) or 21 (II 2D) |
| EN ISO 13849-1 |
PLe / Cat.4 when used with a AWAX 26XXL–EEX safety relay |
| Outputs |
2NO 50 mA max/12V safety outputs
1NC PNP 15 mA/12V auxiliary output
|
| Switching distance |
10mm |
| Hysteresis |
4mm |
| Connection |
Supplied with 12m cable |
| Operating temperature |
-20°C to +40°C |
| IP Rating |
IP69K |
| Mounting |
Double mounting brackets |
| Housing |
316L Stainless Steel |
